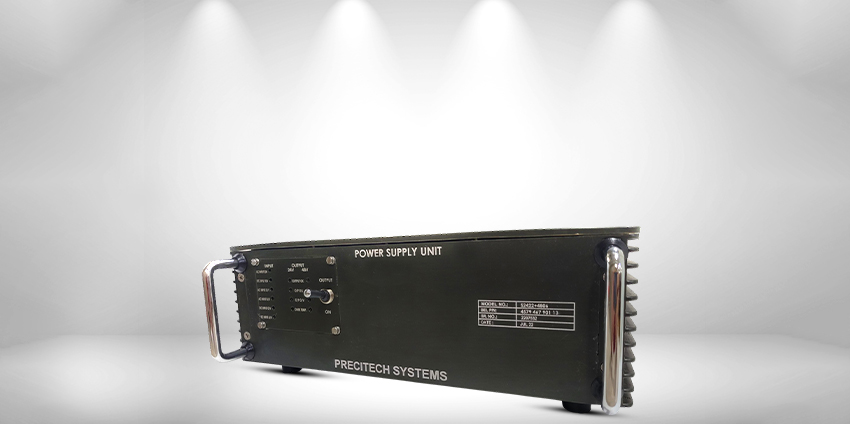

MODEL NO.S2422-4806
Power Supply Unit
Model No. S2422-4806
| S. No. | Parameter | Specification |
|---|---|---|
| 1 | Input Voltage |
Single Phase AC: 220 VAC ±10%, 47–53 Hz DC Input: +22 VDC to +28 VDC |
| 2 | Output Voltage |
DC Outputs: (i) 24V @ 22A (ii) 48V @ 6A |
| 3 | Protections |
• AC Input Undervoltage • AC Input Overvoltage • Output Over Voltage (both outputs) • Short Circuit (both outputs) • Overload Protection (both outputs) |
| 4 | Indications |
• AC Input Undervoltage • AC Input Overvoltage • DC Input Undervoltage • 24VDC Output OK • 48VDC Output OK |
| 5 | Earthing | Proper arrangement for safe and reliable earthing of power supply |
| 6 | M&C Functions |
• Status of voltages & currents at the outputs • Fault status of power supply |
| 7 | Connectors | Circular connectors of appropriate rating and size |
| 8 | Cooling | Convection Cooling |
| 9 | Ingress Protection | Power supply box sealed as per IP65 standard for outdoor application |
| 10 | EMI/EMC Compliance | Compliant to MIL-STD-461F or equivalent (Army ground-based systems) |
| 11 | Mechanical | Power supply box provided with base for surface/ground placement |
