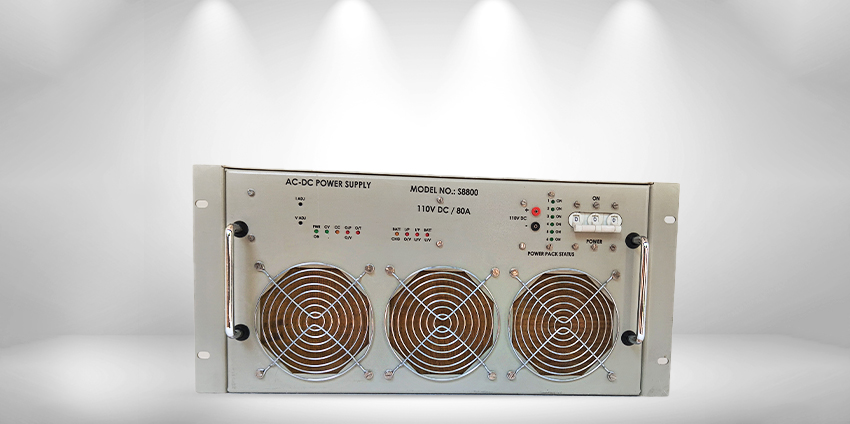

110V 80A DC PSU
- INPUT: 3 Phase AC 415V, 3 Ph 4 Wire
- OUTPUT: 110V, 80A each rectifier with battery charging feature
- REDUNDANCY: 9KW × 2 rectifiers in dual redundancy mode (hot swappable)
- DIMENSIONS: 5U 19” rack configuration
Main Features
- Wide operating range of AC input voltage
- Real-time detection of power system status
- Hot-swappable rectifier modules
- Input over/under voltage protection
- Output over voltage protection
- Output over current protection
- Rugged connectors for error-free interconnection
- Battery charging facility
- Battery under-voltage cut-off facility to prevent deep discharge
- Operator-friendly indicators for faults, status, voltage & current
- When batteries are fully charged, full 80A available for load
Environmental Specifications (Rugged Environment)
- Operating Temperature: -10°C to +55°C
- Storage Temperature: -20°C to +65°C
- Relative Humidity: 20–90% RH (Non-condensing)
- Cooling: Internal forced-air cooling (front to rear)
EMI/EMC Specifications
- Electrical: GB4943-2001, IEC 60950-1, UL60950-1
- EMI: EN 55032:2015, EN 55035:2017, EN61000-3-2:2014, EN55022 Class-A
- ESD: GB17626.2-1998 / IEC61000-4-2
- EFT: GB17626.4-1998 / IEC61000-4-4
- SURGE: GB17626.5-1998 / IEC61000-4-5
- DIP: GB17626.11-1998 / IEC61000-4-11
- Conducted Immunity: IEC61000-4-6
- Radiated Immunity: IEC61000-4-3
- Environment: ETSI EN 300 019-2, ETSI EN 300 132-2
Brief Description
Each rectifier provides 80A @ 110V (70A Load + 10A Battery Charging). Two rectifiers operate in N+1 redundancy mode using 415VAC 3-phase UPS input. In case one rectifier fails, the other continues supplying the full rated 80A. Faulty modules are auto-isolated and hot-swappable, allowing replacement without shutdown. Input and output distribution is handled through a Distribution Box, with redundant diode paralleling of the rectifiers.
Technical Specifications
| S/L | Parameter | Specification |
|---|---|---|
| 1 | Input Voltage | 415 VAC ±10%, 3 Ph, 4 Wire, 45–65 Hz |
| 2 | Input Current | < 18A per phase |
| 3 | Output | 110 VDC / 80A (70A load + 10A battery charging) |
| 4 | Line & Load Regulation | 0.5% (550 mV), measured at output connector pins |
| 5 | Protection |
AC Input Undervoltage AC Input Overvoltage Output Overvoltage Output Overload Short Circuit |
| 6 | Ripple |
< 550 mV p-p (Measured with 0.1uF disc + 100uF electrolytic capacitor in parallel at probe tip, 20MHz BW) |
| 7 | Indications |
PWR ON – Green CV – Green CC – Orange O/P O/V – Red O/T – Red AC Input Overvoltage – Red AC Input Undervoltage – Red Battery Charging – Yellow Battery UV Cut Off – Red Power Pack Status 1 – Green Power Pack Status 2 – Green Power Pack Status 3 – Green Power Pack Status 4 – Green Power Pack Status 5 – Green Power Pack Status 6 – Green |
| 8 | Earthing | Provided |
| 9 | M&C Functions |
Status of Voltages & Currents Fault Status of Power Supply |
| 10 | Connectors |
MS3102R-18-11P (J1) – Input MS3102R-22-22S (J2) – Output MS3102R-22-22P (J4) – Battery Charging Output 9-Pin D Connector Female (J3) – M&C |
| 11 | Controls |
Output ON/OFF MCB (front panel) Test points for 110V/80A output (front panel) I-ADJ and V-ADJ recessed potentiometers |
