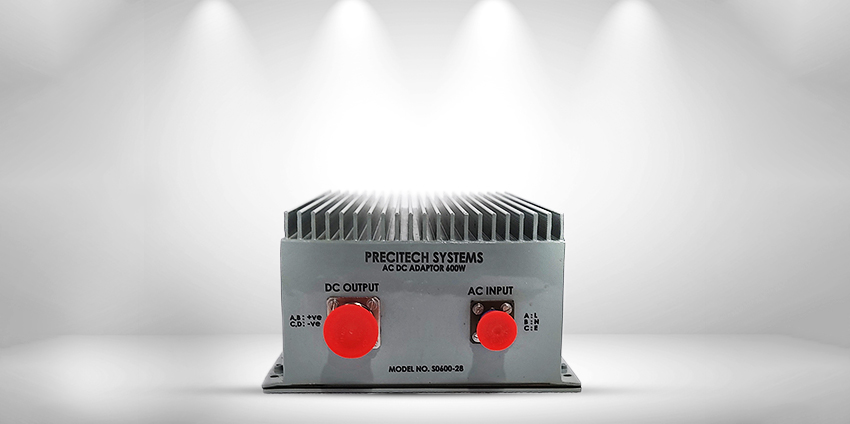

24VDC 600W PSU
Technical Specifications
| Input | 85 – 265 VAC, 45 – 65 Hz |
|---|---|
| Output | 28 VDC ±1%, 600W |
| Efficiency | > 85% @ 230VAC |
| Unit Material | Aluminium |
| Termination (Mating connectors supplied) |
Input Connector: D38999/20WA98PN PIN A: L, PIN B: N, PIN C: E Output Connector: D38999/20FC4SN PIN A, B: +VE Output PIN C, D: -VE Output |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -30°C to +70°C |
| IP Rating | IP55 |
| Environmental Specifications |
As per JSS 55555:2020 Rev-4 (QT) EMI/EMC: As per MIL-STD-461G |
